Object menu in Module Editor

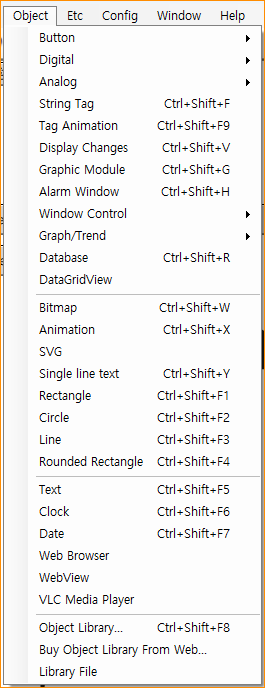

<Figure 1> Object menu of Module Editor



If you select Object menu of module editor, menu is shown such as <Figure 1>.

Object menu is composed of menus as follows.

             Button : It is menu to insert the object related to button.

             Digital : It is menu to insert the object related to digital.

             Analog : It is menu to insert the object related to analog.

             String Tag : It is menu to show the current string of string tag.

             Tag Animation : It is object to display the specified bitmap or animation according to value of several tags.

             Display Changes : It is object to show the changing analog/digital current value in order.

             Graphic Module : It is object to use the created graphic module file as object.

             Alarm Window : It is window to show the alarm contents when alarm takes place.

             Window Control : It is menu to insert the window control object such as list box, combo box, edit box, radio box, check box.

             Graph/Trend : It is menu to insert the object which related to graph and trend.

             Database : It is object to show the database material as list type.

             DataGridView : It is module object to show the data or database material which user identify, as datagrid.

             Bitmap : It is object to display the bitmap.

             Animation : It is object to display the animation(moving bitmap).

             Single line text : It is object to display the text(single line).

             Rectangle : It is object to display the rectangle at LocalMain.

             Circle : It is object to display the circle at LocalMain.

             Line : It is object to display the line at LocalMain.

             Rounded Rectangle : It is object to display the rounded rectangle at LocalMain.

             Text : It is object to display the text(possible to several lines).

             Clock : It is object to display the current time.

             Date : It is object to display the current date.

             Web Browser : It is object to show the web page.

             Object Library... : It is function to insert the registered(Basic, User Local, User Web) library.

             Buy Object Library From Web... : It is function to insert the registered object library by buying at web.

             Library File : It is menu to insert the saved object library at ¡®Edit | Save to Library File¡¯ menu.
