VLC Media Player is a module object that supports RTSP streaming of IP Camera and CCTV, screen playback of video devices such as webcams, and video playback.
(VLC Media Player objects are available in versions 10.3.6.21 and later.)
The VLC Media Player graphic object uses VLC ActiveX, so it can be used only when the VLC program is installed.
Note) Installing the VLC Media Player and Registering the DLL Registry
If you select 'Objects|VLC Media Player' in the module editor, the VLC Media Player module objects as shown in Figure 1 are inserted into the editor.

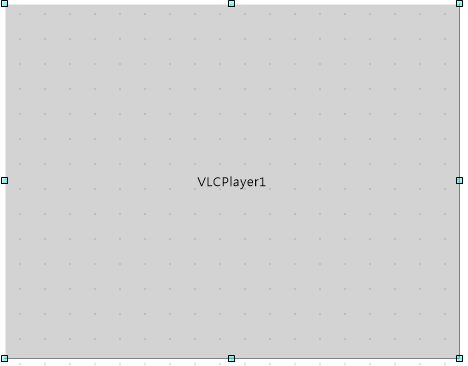

<Figure 1> An example of a VLC Media Player module object.
If you set the location and size of the VLC Media Player module object such as <Figure 1>,
double-click 'File | Properties', 'Properties' on the shortcut menu, or left-click the mouse, a dialog box such as <Figure 2> appears.

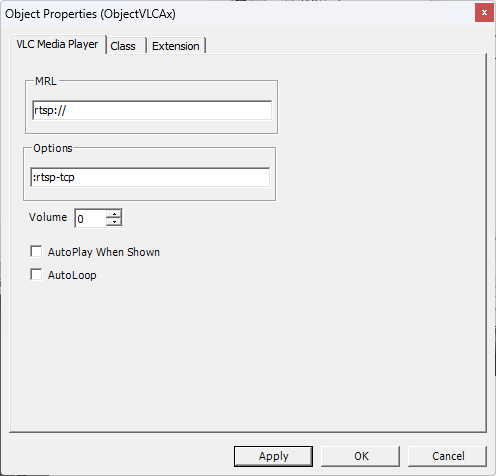

<Figure 2> is the VLC Media Player tab of the VLC Media Player Object Properties dialog box. Here, the following is set.
MRL: Set the media address that you want to play in the VLC Media Player module object.
ex1) http://www.example.com/stream.avi
ex2) rtsp://@:1234 //RSTP streaming
ex3) file:///C:/AutoBase/example.mp4 //Play a local file
ex4) dshow:// //Video devices (webscams, etc.)
Options: Set options such as the time (in milliseconds) to store data in a buffer before starting playback, protocol format, etc
ex1) 0 //If there are no other options, such as playing local files, enter zero
ex2) :rtsp-tcp //When using the rstp protocol, loading is fast when playing.
ex3) :network-caching=1000 //Use network cache in milliseconds to improve image quality using buffers when the network is unstable. An image delayed by 1 second is output.
ex4) :dshow-vdev=Microsoft¢ç LifeCam HD-3000 :dshow-adev= //Video Devices (Microsoft LifeCam Devices)
Volume : Set the volume of the VLC Media Player module element
AutoPlay When Shown: Auto-play at the time of element display with MRL of properties and content set in options.
AutoLoop: automatically repeats a playlist.
In VLC Media Player, you can set classes and extensions on the Element Properties dialog box Class and Extensions tab.
<Figure 2> An example of the VLC Media Player object Properties dialog box
