LocalMain Main Help

LocalMain program is Autobase main program to charge of monitoring and controlling field situation or executing script, etc.

Also, LocalMain program can do Report view/print of monitored data.

Executing the LocalMain program

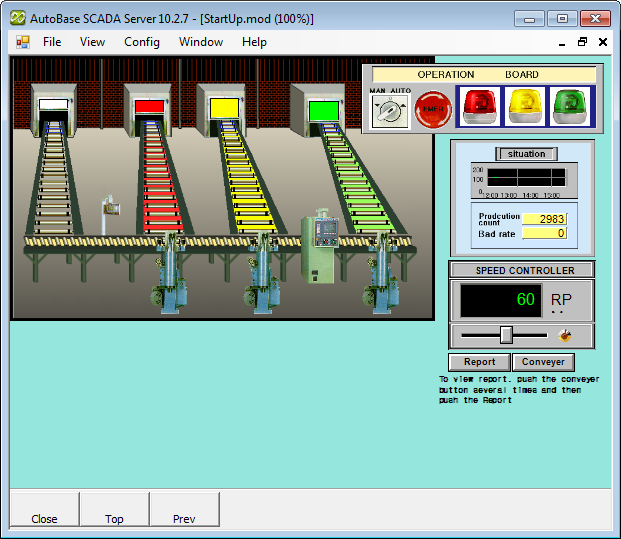

If you execute 'AutoBase SCADA Server' of starting menu or 'LocalMain.exe' of installation folder after installing program, LocalMain program is executed as starting screen such as <Figure 1>.

Main menu of LocalMain program

Main menu of LocalMain program is composed of as follows.

File : Log In, Log Out, Write Memo, Read Memo, Print Screen..., Screen Save..., Save Selection Zone..., Run Studio and Exit menu.

View : Graphics, Entire Tags, …, Registered Groups, related to Alarm, Log, Script, Communication Server, Report, Demand Control, Milli-Data, Schedule and etc menu.

Config : Composition of menu related to LocalMain configuration such as Alarm, Font, Data and etc.

Window : Menu related to window arrangement.

Help : Menu to view Help.

View menu in LocalMain program

Graphics : It is screen to monitor field situation in real time as the created module(MODX, MOD) at studio.

Entire Tags : It is screen able to work for monitoring/controlling and etc about entire tags(Analog, Digital, …).

Analog Inputs : It is screen able to work for monitoring/controlling and etc about entire analog input tags.

Analog Outputs : It is screen able to work for monitoring/controlling and etc about entire analog output tags.

Digital Inputs : It is screen able to work for monitoring/controlling and etc about entire digital input tags.

Digital Outputs : It is screen able to work for monitoring/controlling and etc about entire digital output tags.

String Tags : It is screen able to work for monitoring/controlling and etc about entire string tags.

Registered Groups : It is screen to see group which is registered among entire tags randomly.

Alarm Files : It is screen to see all generated alarms by date.

Alarm Events : It is screen to see alarm which were set screen alarm type as 'During Alarms', 'Until Users Confirm' among generated alarms.

Log Files : It is screen to see log information by date.

Scripts : It is screen to see running state of 'At Program Running...' script which was created at Studio.

Communication Server : It is possible to activate or execute the Communication Server.

Reports : It is menu to view or print the report which was created at Studio.

Demand Controls : It is menu to see demand control state as graph.

Milli-Datas : It is screen to see the saved analog/digital tag value by milli-data as graph type.

Schedules : It is function to set and operate schedule for each date by setting schedule about by date, specific date and etc.

DB Integrations : It calculates the saved database data by 'Config Auto Save Lists' of Data Server program, as last year, this year, last month, this month, yesterday, today, last hour and this hour.

Navigation : It is function to show entire MDI graphic monitoring screen which is currently activated, and to see monitoring screen according to user selection by zoom in/out.

Reference) All menus(View or submenu of View, etc) of LocalMain program can be rearranged or not displayed by using menu edit function.
