Viewing the Digital Inputs
If you select 'View | Digital Inputs' of LocalMain program, digital inputs screen is opened such as <Figure 1>.
You can move to this screen by using Entire Tags and object related to digital of graphics.
You can see all digital input tag's tag name, description, current value, unit, whether to save data, whether to use alarm, Out1, Out2 and whether to use hand input by using digital inputs screen.
Also, you can do work on digital input detail, digital trend, digital data view, control and setting etc by using shortcut menu and menu button etc.

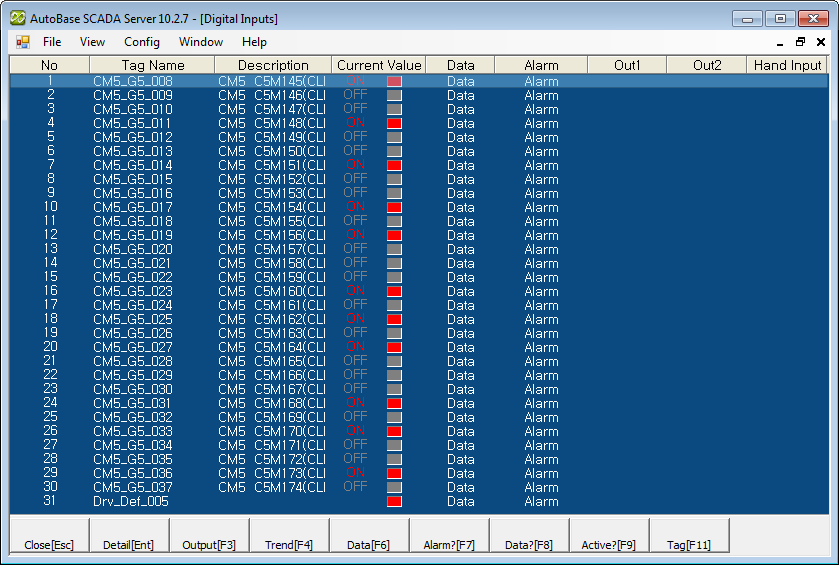

<Figure 1> Example for Digital Inputs screen
You can select the tag at digital inputs screen by using mouse, direction key or Page Up, Page Down, Home(first of list), End(end of list) etc.
You can set background color, tag color, description color, text color, font, text size, etc of Digital Inputs at 'Config|Colors', 'Config|Font' menu.
There are menu buttons below digital input view screen such as
,
,
,
,
,
,
,
,
.
If you press mouse right button at digital input view screen, shortcut menu of digital input view is shown such as <Figure 2>.
You can work on moving to other menu or setting, etc by using shortcut menu and menu button as follows.
Close : You can close digital inputs screen by selecting
button.
Digital Input Detail : You can move by
selecting
button or Digital Detail of shortcut menu or double clicking mouse left
button.
Notice) If you select inactivated tag, this button will not be activated.
Change Value : You can
change setting value of digital input by selecting
button or Change Value of shortcut menu.
In case of link type is memory, system or PLC_SCAN tag and tag which Out1 was set.
Notice) If you select inactivated tag, this button will not be activated.
Digital Trend for 1
Hour ~ 30 Days : You can move to Digital Historical Trend screen by
selecting
button or Digital Trend for 1 Hour ~ 30 Days of shortcut menu.
Notice) If you select inactivated tag, this button will not be activated.
Digital Minutely ~
Monthly Data View : You can move to Digital Data View screen by selecting
button or Digital Minutely ~ Monthly Data of shortcut menu.
Notice) If you select inactivated tag, this button will not be activated.
Whether to Set Alarm : You can set whether to use alarm of
digital input tag by selecting
button.
Whether to Set Saving Data : You can set whether to save
data of digital input tag by selecting
button.
Whether to Set Valid Tag : You can set whether to act
digital input tag by selecting
button.
Tag Properties :
You can modify tag properties by selecting
button or 'Tag Properties' of shortcut menu.
Set Temporary Value : You can set(ban the scan) or unset the temporary value for digital input tag by selecting 'Set Temporary Value' of shortcut menu.
Notice) If you select inactivated tag, this button will not be activated.
Tag Search : You can search the tag with tag name or position number by using Tag Search of shortcut menu.

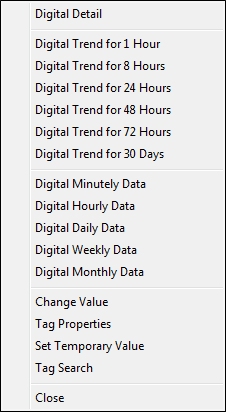

<Figure 2> Shortcut menu of Digital Inputs
Relate items)
Viewing the Digital Input in Detail
Changing the Digital Input Value
Setting the Digital Temporary Value
