Changing the Digital Input Value

If you select 'Change Value' at menu button( etc)/shortcut menu of Entire Tags, shortcut menu of Digital Inputs and shortcut menu of graphic object related to digital etc, dialogue box is shown such as <Figure 1>.

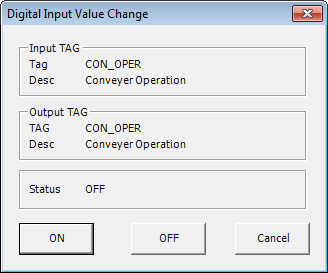

<Figure 1> Digital Input Value Change dialogue box

You can output the value as ON or OFF by pressing the or button of <Figure 1>.

Also, if you press button, <Figure 1> dialogue box is closed.

Text which is displayed at 'ON', 'OFF' button of <Figure 1> is ON and OFF description of tag parameter.

But, if you set ON and OFF description as blank, it displays as 'ON', 'OFF'.

You can change the digital current value, when tag type is memory or PLC_SCAN with setting OUT1 or OUT2.

Tag type, OUT1, OUT2 etc for digital input tag are set at tag properties dialogue box or tag editor.

Relate items)

Modifying the Tag Properties (DI tab)
