Config menu in LocalMain

If you select Config menu of LocalMain, submenu is shown such as <Figure 1>.

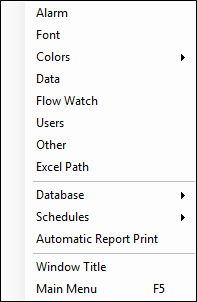

<Figure 1> Config menu of LocalMain

Config menu of LocalMain is composed of menus, as follows.

Alarm : It is menu to configure the alarm such as Disable all alarms etc.

Font : It sets the font and font size etc which are displayed at basic screen such as Entire Tags.

Colors : It sets the colors which is used at basic screen.

Data : It sets the save method for minute/hour data etc.

Flow Watch : It is function to change the graphic screen automatically for monitoring.

Users : It is menu to set registering the user, delete and modifying the password etc.

Other : It sets the general configurations of LocalMain.

Excel Path : It sets the execution file path of excel program to be used at excel reporter etc.

Database : It sets the connection string and shared database.

Schedules : It sets the yearly fixed/additional schedule, models and weekly schedule.

Automatic Report Print : It prints the set reporter automatically at every specified time.

Window Title : It sets whether to display the window title.

Main Menu(F5) : It sets whether to display the main menu.

Reference) You can change or re-arrange all menus(or submenus) of LocalMain by using the user menu(menu edit).

Relate items)

Setting the All Alarms
