Printing the Report Automatically
It is function to automatically print the reporter(Basic Report or Excel Report) at every hour/day/month and specified hour/min which you set.
If you select 'Config | Automatic Report Print' of LocalMain, dialogue box is shown such as <Figure 1>.

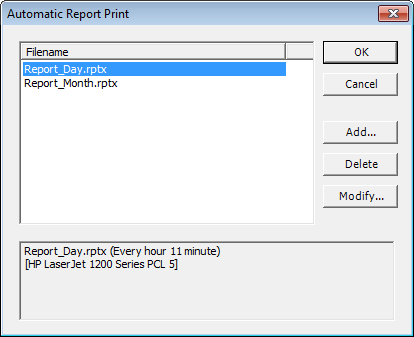

<Figure 1> Example of Automatic Report Print dialogue box
You can add/modify/delete the items of automatic print by selecting the
/
/
button of <Figure 1>.

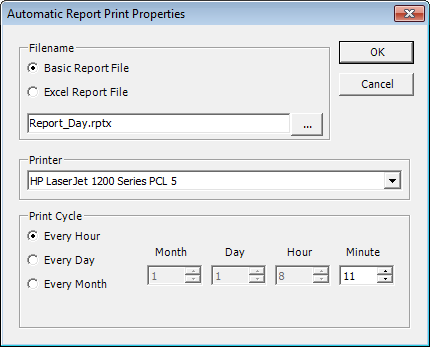

<Figure 2> Example of Automatic Report Print Properties dialogue box
At Filename of <Figure 2>, select the reporter type of 'Basic
Report File', 'Excel Report File' and input
the reporter file to print automatically by pressing the
or editor.
Also, set the Printer and Print Cycle such as <Table 1>
Print Cycle |
Print Time |
Setting Contents |
Notes |
Every Hour |
Print at specified minute in every hour |
Set the Minute |
Hourly Report |
Every Day |
Print at specified hour and minute in every day |
Set the Hour, Minute |
Daily Report |
Every Month |
Print at specified day, hour and minute in every month |
Set the Day, Hour, Minute |
Monthly Report |
<Table 1> Settings contents and print time according to automatic print cycle
