Viewing the Analog Outputs
If you select 'View | Analog Outputs' of LocalMain program, analog outputs screen is opened such as <Figure 1>.
Also, you can move to this screen at entire Tags screen etc.
You can see all analog output's tag name, description, current value and unit etc by using analog outputs screen.
Also, you can do work on moving, controlling and setting etc by using analog output shortcut menu or menu button etc.

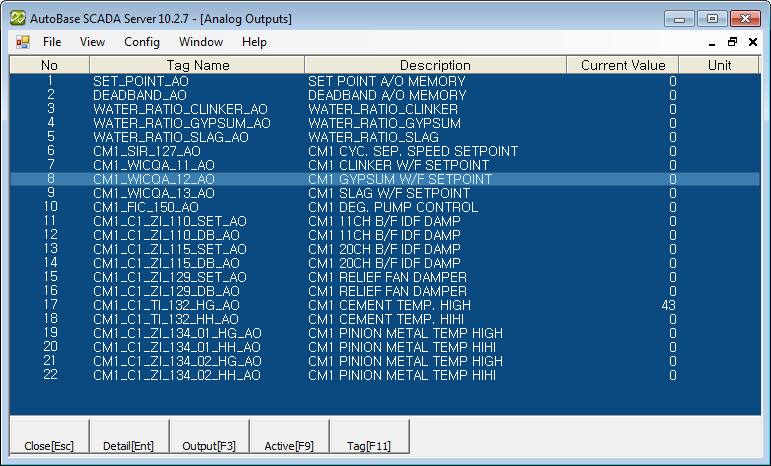

<Figure 1> Example for Analog Outputs screen
You can select the tag at analog outputs screen such as <Figure 1> by using mouse, direction key of keyboard or Page Up, Page Down, Home(first of list) and End(end of list) etc.
You can set background color, tag color, description color, text color, font, text size, etc of analog outputs at 'Config|Colors', 'Config|Font' menu.
There are menu buttons below analog output view screen such as
,
,
,
,
.
If you press mouse right button at analog output view screen, shortcut menu of analog output view is shown such as <Figure 2>.
You can work on moving to other menu or setting etc by using shortcut menu and menu button as follows.
Close : You can close analog outputs screen by selecting
button.
Analog Output Detail : You can move to
analog output detail screen by selecting
button
or 'Analog Output Detail' of shortcut menu or double clicking mouse left
button.
Notice) If you select inactivated tag, this button will not be activated.
Change Value :
You can change setting value of analog output by selecting
button
or 'Change Value' of shortcut menu.
Notice) If you select inactivated tag, this button will not be activated.
Whether to Set Valid Tag : You can set whether to act
analog output tag by selecting button.
Tag Properties :
You can modify tag properties by selecting
button or
'Tag Properties' of shortcut menu.
Tag Search : You can search the tag with tag name or position number by using Tag Search of shortcut menu.
<Figure 2> Shortcut menu of Analog Outputs
Relate items)
Viewing the Analog Output in Detail
Changing the Analog Output Value
