Executing the Studio
If you select 'File | Run Studio'(Ctrl + F12) of LocalMain, Studio is executed as current LocalMain screen, such as <Figure 1>.
When you select Run Studio menu, Studio is executed following screen according to current LocalMain screen.
Graphics : Module editor which is starting from current selected module file.
Reports : Report editor which is starting from current selected report file.
Entire Tags : Tag editor.
Analog Inputs/Outputs : Tag editor.
Digital Inputs/Outputs : Tag editor.
String Tags : Tag editor.
Scripts : Script editor.

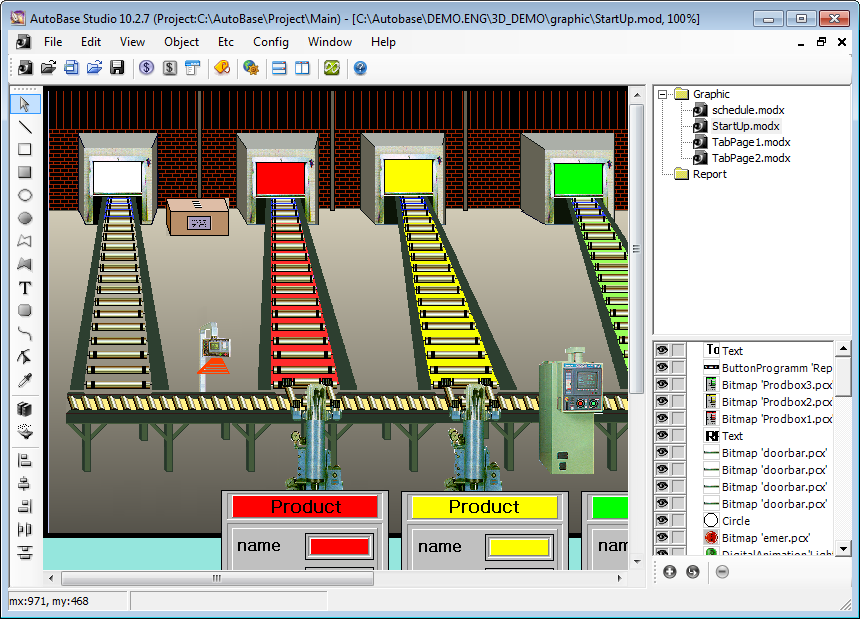

<Figure 1> Example of executing the Studio
Notice) If you don't check(V) 'Enable Edit' at Project Manager program, 'Run Studio' menu isn't activated.
