Saving the Screen as File
If you select 'File | Screen Save...' of LocalMain, dialog box is shown such as <Figure 1>.
Screen Save is function to save not only current LocalMain screen but also entire window screen.

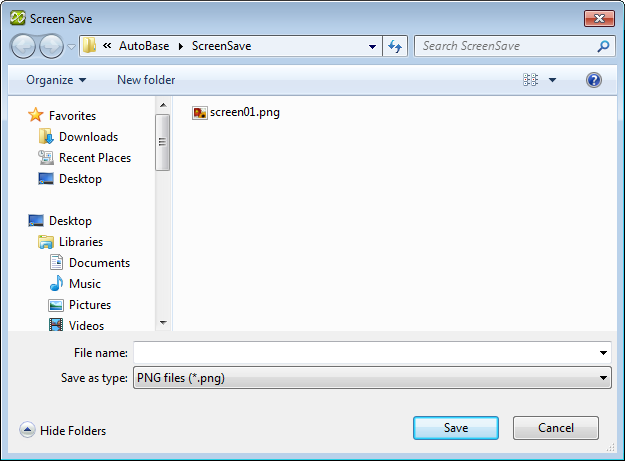

<Figure 1> Screen Save dialog box
If you enter file name and file format to save at dialog box of <Figure 1>
and press the
button, you can save current LocalMain screen as bitmap type.
Bitmap file format to save is PNG, BMP and JPG. (PNG format is supported from 10.2.4 version)
Reference) Screen Save is same function with saving at Paint editor by saving screen at clipboard by using Print Screen key.
Relate items)
