Setting the Basic Colors
It is menu to set the text and background color of default screen such as Entire Tags, Analog Inputs, Analog Outputs, Digital Inputs, Digital Outputs, String Tags, Alarm Files, Log Files.
If you select 'Config | Colors | Basic Colors' of LocalMain, dialogue box is shown such as <Figure 1>.

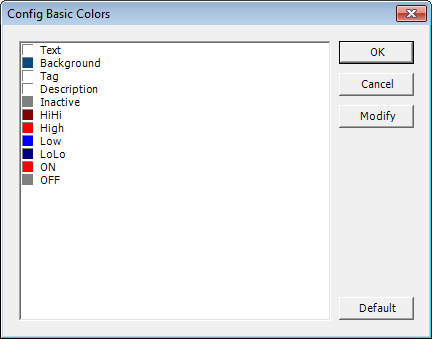

<Figure 1> Config Basic Colors dialogue box
If you select single item of <Figure 1> and select the
button or double click the list, Color dialogue box is shown such as <Figure
2>.

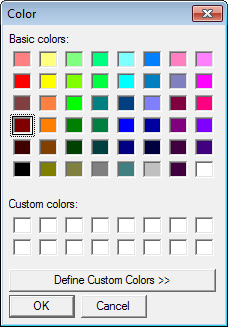

<Figure 2> Color dialogue box
You can change the color by selecting the colors at <Figure 2>.
If you select
of <Figure 1>, color is set as default colors.
