Viewing the Analog Rotate Graphic Object
It is analog rotate graphic object to display the analog current value as angle of picture, such as <Figure 1>.
You can use the rotation picture by using default picture or by creating specific picture.

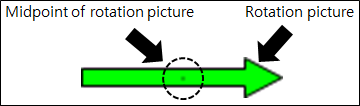

<Figure 1> Example for Analog Rotate graphic object
Analog input tag, rotation picture, direction of rotation, background picture and background color etc for analog rotate graphic object are displayed as the contents which were set at studio(analog rotate of module editor).

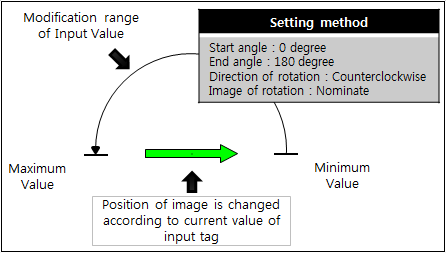

<Figure 2> is principle of displaying analog rotate object.
<Figure 2> Principle of displaying Analog Rotate object at graphic screen
If you press mouse left button at analog rotate graphic object, you can move to menu which was set at studio, and if you press mouse right button, shortcut menu of graphic object related to analog is shown and you can move to view screen by using this menu.
But, if you don't set the mouse response of graphic object at studio, there isn't mouse response.
Relate items)
Viewing the Analog Rectangle Graphic Object
Viewing the Analog String Graphic Object
Viewing the Analog Meter Graphic Object
Viewing the Analog Status Graphic Object
Setting the Analog Rotate at Studio
Shortcut menu of Graphic Object Related to Analog
