Shortcut menu of Graphic Object Related to Analog
If you press mouse left button at graphic object related to analog, menu which was set at studio is selected, and if you press mouse right button, shortcut menu related to analog is shown such as <Figure 1>.
Shortcut menu of graphic is shown when you press mouse right button at object related to analog which mouse response wasn't set.
Notice) If you didn't set the mouse response for left/right button at 'Config | Other', there isn't mouse response for object related to analog.

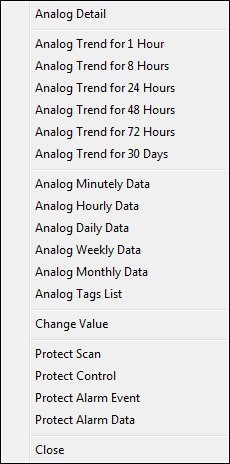

<Figure 1>Shortcut menu of graphic object related to analog
Shortcut menu related to analog object of <Figure 1> is composed as follows.
Analog Detail : Move to screen to be able to see analog input tag property and real time trend etc.
Analog Trend for 1 Hour ~ 30 Days : Move to screen to be able to see 1 hour ~ 30 days trend for analog input tag.
Analog Minutely ~ Monthly Data : Move to screen to be able to see minutely ~ monthly data for analog input tag.
Analog Tags List : Move to analog input view screen.
Change Value : Move to screen to change the setting value(output value) of analog tag which is set as memory tag or AO SV was set.
Protect Scan(set temporary value) : It is function to set and fix the current value of analog input tag as specific value.
Protect Control : It is menu to set whether to control(output) the analog input tag.
Protect Alarm Event : It is menu to set whether to display alarm event window or message screen to screen when alarm of analog tag occurs.
Protect Alarm Data : It is menu to set whether to save alarm data when alarm of analog tag occurs.
Close : Close the shortcut menu.
