Viewing the Analog Meter Graphic Object
It is analog meter graphic object to display the analog current value as gradation, such as <Figure 1>.
<Figure 1> Example for Analog Meter graphic object
Size of object, analog tag, font, text color and background color etc for analog meter graphic object are displayed as the contents which were set at studio(analog meter of module editor).

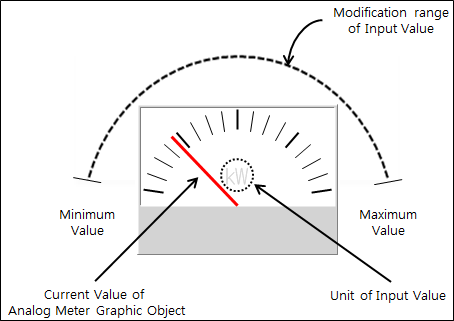

<Figure 2> is principle of displaying analog meter object.
<Figure 2> Principle of displaying Analog Meter object at graphic screen
If you press mouse left button at analog meter graphic object, you can move to menu which was set at studio, and if you press mouse right button, shortcut menu of graphic object related to analog is shown and you can move to view screen by using this menu.
But, if you don't set the mouse response of graphic object at studio, there isn't mouse response.
