Viewing the Analog Rectangle Graphic Object
It is analog rectangle graphic object to display the analog current value as rectangle shape, such as <Figure 1> and <Figure 2>.
<Figure 1> Example for Analog Rectangle graphic object(In case of that bar direction is from bottom to top)
<Figure 2> Example for Analog Rectangle graphic object(In case of that bar direction is from left to right)
Analog rectangle graphic object is displayed as different shape according to bar direction(bottom to top, top to bottom, left to right, right to left) such as <Figure 1> and <Figure 2>.
Color of object, font, size of rectangle and bar direction etc for analog rectangle graphic object are displayed as the contents which were set at studio(analog rectangle of module editor).

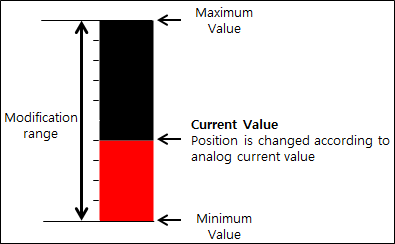

<Figure 3> is principle of displaying analog rectangle object.
<Figure 3> Principle of displaying Analog Rectangle object at graphic screen(In case of that bar direction is from bottom to top)
If you press mouse left button at analog rectangle graphic object, you can move to menu which was set at studio, and if you press mouse right button, shortcut menu of graphic object related to analog is shown and you can move to view screen by using this menu.
But, if you don't set the mouse response of graphic object at studio, there isn't mouse response.
