Viewing the Digital String Graphic Object
It is digital string graphic object to display the digital current value as text, such as <Figure 1>.

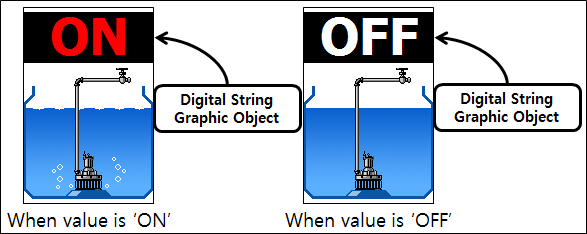

<Figure 1> Example for Digital String graphic object
Test size, font, color, background color, position of object and digital input tag etc of digital string graphic object are set at studio. (Digital string graphic object settings)
Also, the displayed text is ON and OFF description which were set at digital tag property.
If you press mouse left button at digital string graphic object, you can move to menu which was set at studio, and if you press mouse right button, shortcut menu of graphic object related to digital is shown and you can move to view screen by using this menu.
But, if you don't set the mouse response of graphic object at studio, there isn't mouse response.
