Viewing the Digital Circle Graphic Object
Digital circle graphic object is graphic object to show the size of circle and color etc which were set at studio(digital circle graphic object settings) according to status of digital input tag.

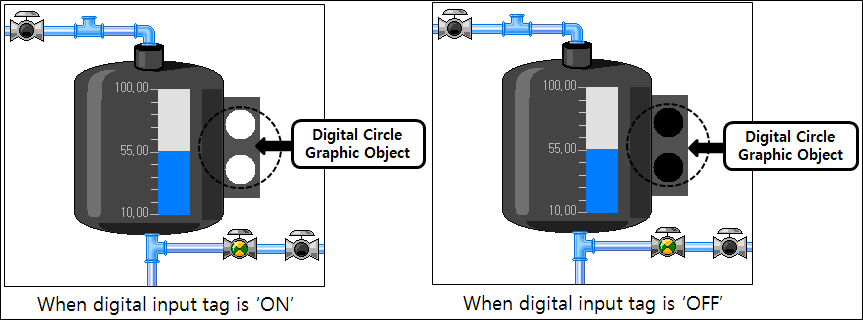

<Figure 1> is digital circle graphic object of ON or OFF status.
<Figure 1> Example for Digital Circle graphic object
If you press mouse left button at digital circle graphic object, you can move to menu which was set at studio, and if you press mouse right button, shortcut menu of graphic object related to digital is shown and you can move to view screen by using this menu.
But, if you don't set the mouse response of graphic object at studio, there isn't mouse response.
