Setting the Alarm Colors
It is menu to set the screen colors which are displayed at alarm, alarm event window.
If you select 'Config | Colors | Alarm Colors' of LocalMain, dialogue box is shown such as <Figure 1>.

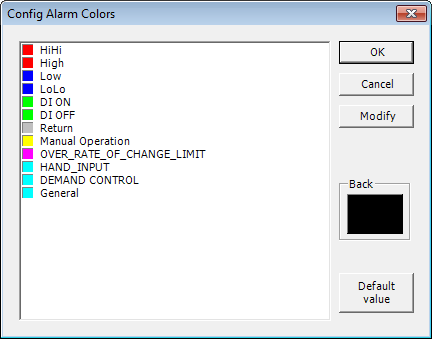

<Figure 1> Config Alarm Colors dialogue box
If you select single item of <Figure 1> and select the
button or double click the list, Color dialogue box is shown such as <Figure
2>.
Also, you can see the dialogue box, when you select part.
Also, dialogue box is shown, when you select
part.
'Back' is menu to set the background colors of Alarm Files screen.

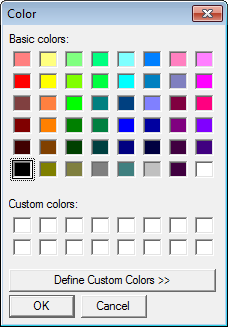

<Figure 2> Color dialogue box
You can change the alarm color by selecting the colors at <Figure 2>.
If you select
of <Figure 1>, color is set as default colors.
Relate items)
