It is data object to display the AI instantaneous value, as much as you set.
Select tag dialogue box is displayed, when you select the 'AI Multi Instantaneous' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, data time dialogue box comes up.
<Figure 1> is example of inserting data object for AI Multi Instantaneous.
<Figure 1> Example of inserting data object for AI instantaneous value of multiple lines
This data object setting is same with average value of multiple lines data object. But data command(AiMultiMoment) is different.
<Figure 2> is example of data object setting for instantaneous value of multiple lines.
Instantaneous value point is set such as <Table 1>.

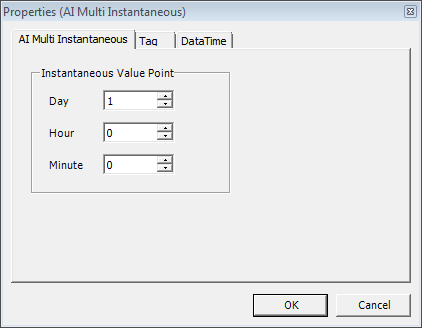

<Figure 2> Properties (AI Multi Instantaneous) dialogue box
| Time | Data point to set |
Note |
| Minute | None |
Time to View : Year, Month, Day, Hour, Time Range : Minute |
| Hour | Minute |
Time to View : Year, Month, Day, Time Range : Hour |
| Day | Hour, Minute |
Time to View : Year, Month, Time Range : Day |
| Month | Day, Hour, Minute |
Time to View : Year, Time Range : Month |
<Table 1> Point of moment value to set as time division
You can edit moment value of multiple lines in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMultiMoment),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit,
9) AI Moment Value Point, Day (1 ~ 31(Sometimes 30 or 29, 28)),
10) AI Moment Value Point, Hour (0 ~ 23),
11) AI Moment Value Point, Min (0 ~ 59),
Example of editing a cell text) =AiMultiMoment,AI_101R,Hour,0,23,0,0,1,0,0,
Reference) In case of you don't have AiMultiMoment data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
Relate items)
AI Average Value of Multiple Lines
