It is data object to display the AI instantaneous value of time which you set. (Day, Hour, Minute)
Select tag dialogue box is displayed, when you select the 'AI Moment' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, data time dialogue box comes up.
<Figure 1> is example of inserting data object for AI Moment.
<Figure 1> Example of inserting data object for moment value of analog input
This data object setting is same with average value data object. But data command(AiMoment) is different.

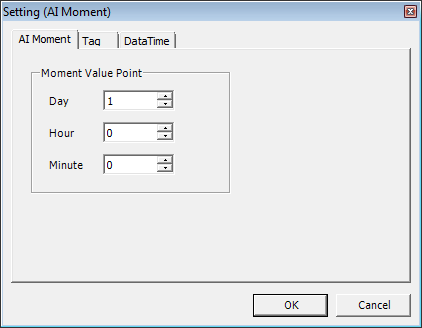

<Figure 2> is example of data object setting for moment value of analog input.
Moment Value Point is set such as <Table 1>.
<Figure 2> Setting (AI Moment) dialogue box
| Time | Data point to set |
Note |
| Minute | None |
Time to View : Year, Month, Day, Hour, Time Range : Minute |
| Hour | Minute |
Time to View : Year, Month, Day, Time Range : Hour |
| Day | Hour, Minute |
Time to View : Year, Month, Time Range : Day |
| Month | Day, Hour, Minute |
Time to View : Year, Time Range : Month |
<Table 1> Point of moment value to set as time division
You can edit moment value in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMoment),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) AI Moment Value Point, Day (1 ~ 31(Sometimes 30 or 29, 28)),
10) AI Moment Value Point, Hour (0 ~ 23),
11) AI Moment Value Point, Min (0 ~ 59),
Example of editing a cell text) =AiMoment,AI_101R,Mon,1,12,0,0,1,0,0,
Reference) In case of you don't have AiMoment data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
