It is data object to display the AI average value, as much as you set.
Select tag dialogue box is displayed, when you select the 'AI Multi Ave' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.

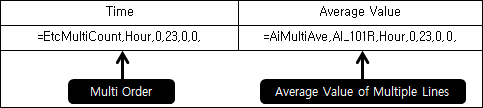

<Figure 1> is example of the inserted data object for average value of multiple lines.
<Figure 1> Example of the inserted data object for average value of multiple lines.

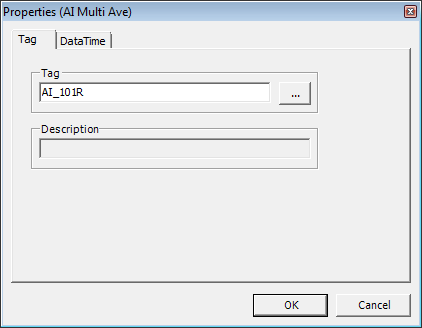

If you double click the AI Multi Ave which is inserted in cell, dialogue box comes up such as <Figure 2>.
<Figure 2> Properties (AI Multi Ave) dialogue box

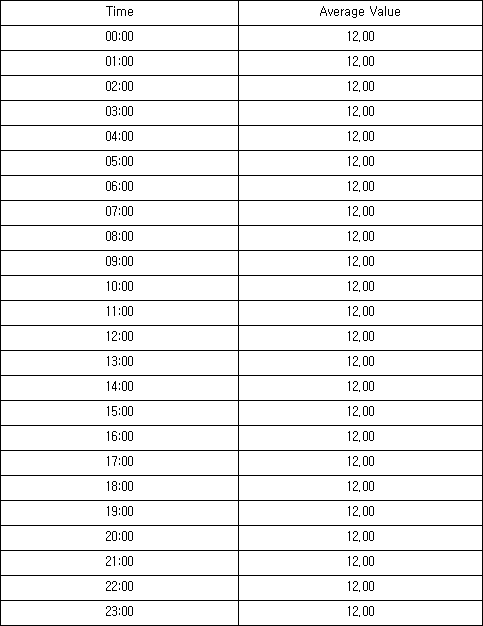

<Figure 3>is 'View as run mode' of <Figure 1> at LocalMain or Reporter Editor.
<Figure 3> Example of viewing as run mode of <Figure 1>
You can edit an average value of multiple lines in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMultiAve),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
Example of editing a cell text) =AiMultiAve,AI_101R, Hour,0,23,0,0,
Small/Large unit of Start/End time means the stage of time.
ex) If time division is 'Minute', it is start time, and large unit of end time is 'Hour'. Also, if start time is 'Hour', large unit of end time is 'Day'.
Reference) In case of you don't have AiMultiAve data, it displays null data which you set at 'Config | Report Etcกฏ. (Basic : *** )
