It is data object to display 'DI ON Count' data as much as amount of time for a specified time range.
Select tag dialogue box is displayed, when you select the 'DI Multi ON Count' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, data time dialogue box comes up.
<Figure 1> is example of inserting data object for DI Multi ON Count.
<Figure 1> Example of inserting data object for DI count of ON for multiple lines
This data object setting is same with DI Multi ON Time data object. But data command(DiMultiOnCount) is different.

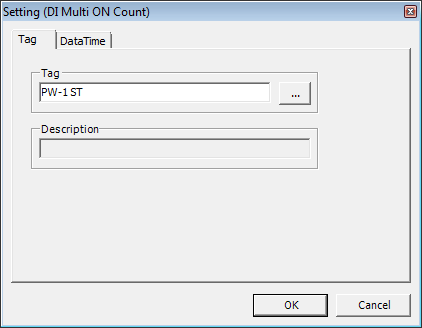

<Figure 2> is example of data object setting for DI Multi ON Count.
<Figure 2> Setting (DI Multi ON Count)
You can edit DI Multi ON Count data object in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiMultiOnCount),
3) Digital input tag(PW-1 ST etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
Example of editing a cell text) =DiMultiOnCount,PW-1 ST,Hour,0,23,0,0,
Reference) In case of you don't have DiMultiOnCount data, it displays null data which you set at 'Config | Report Etcกฏ. (Basic : ***)
