It is data object to display the number of ON for DI for a specified time.
Select Tag dialogue box is displayed, when you select the 'DI ON Count' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, DataTime dialogue box comes up.
<Figure 1> is example of inserting data object for DI ON Count.
<Figure 1> Example of inserting data object for DI ON Count

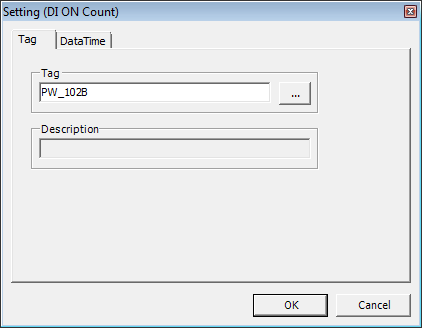

You can set Tag to use and DataTime range at Tag tab and DataTime tab such as <Figure 2>.
<Figure 2> Setting (DI ON Count) dialogue box
<Figure 3> is example of 'View as run mode' for <Figure 1>.
<Figure 3> Example of 'View as run mode' for <Figure 1>
You can edit DI ON Count data object in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiOnCount),
3) Digital input tag(PW_102A etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =DiOnCount,PW_102A,Hour,9,9,0,0,0,
Reference) In case of you don't have DiOnCount data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
