It is data object to display 'DI OFF Time' data as much as amount of time for a specified time range.
Select tag dialogue box is displayed, when you select the 'DI Multi OFF Time' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, data time dialogue box comes up.
<Figure 1 > is example of inserting data object for DI Multi OFF Time.
<Figure 1> Example of inserting data object for DI off time value of multiple lines
This data object setting is same with DI Multi ON Time data object. But data command(DiMultiOffTime) is different.
<Figure 2> is example of data object setting for DI Multi OFF Time.

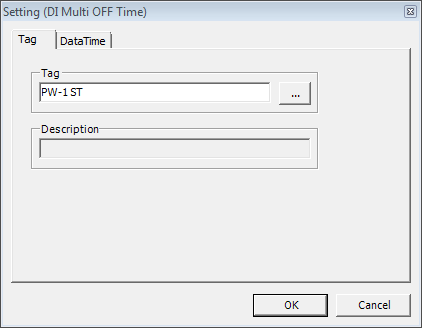

<Figure 2> Setting (DI Multi OFF Time) dialogue box
You can edit DI Multi OFF Time data object in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiMultiOffTime),
3) Digital input tag(PW-1 ST etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
Example of editing a cell text) =DiMultiOffTime,PW-1 ST,Hour,0,23,0,0,
Reference) In case of you don't have DiMultiOffTime data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
Relate items)
DI ON Time Value of Multiple Lines
