It is data object to display 'DI OFF Time' data for a specified time.
Select Tag dialogue box is displayed, when you select the 'DI OFF Time' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, DataTime dialogue box comes up.
<Figure 1> is example of inserting data object for DI OFF Time.
<Figure 1> Example of inserting data object for DI OFF Time
This data object setting is same with 'DI ON Time' data object. But data command(DiOffTime) is different.
<Figure 2> is example of data object setting for DI OFF Time.

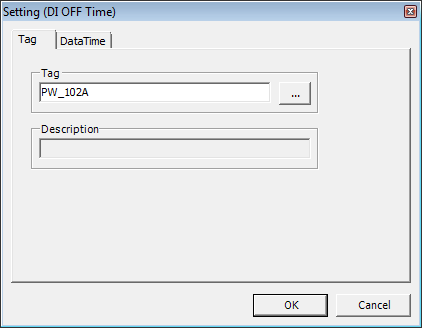

<Figure 2> Setting (DI OFF Time) dialogue box
<Figure 3> is example of 'View as run mode' of <Figure 1>.
<Figure 3> Example of 'View as run mode' for <Figure 1>
You can edit DI OFF Time data object cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiOffTime),
3) Digital input tag(PW_102A etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =DiOffTime,PW_102A,Hour,9,9,0,0,0,
Reference) In case of you don't have DiOffTime data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
