It is data object to display 'DI ON Time' data for a specified time.
Select Tag dialogue box is displayed, when you select the 'DI ON Time' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, DataTime dialogue box comes up.
<Figure 1> is example of inserting data object for DI ON Time.
<Figure 1> Example of inserting data object for DI ON Time

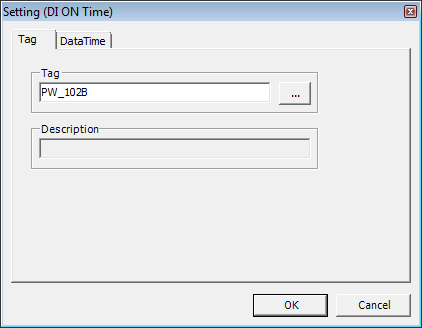

<Figure 2> is example of data object setting for DI ON Time.
<Figure 2> Setting (DI ON Time) dialogue box
You can set the tag and time, by using the Tag tab and DataTime tab.
<Figure 3> is example of 'View as run mode' of <Figure 1>.
<Figure 3> Example of 'View as run mode' for <Figure 1>
You can edit DI ON Time data object cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiOnTime),
3) Digital input tag(PW_102A etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =DiOnTime,PW-102A ,Hour,9,9,0,0,0,
Small/Large unit of Start/End time means the stage of time.
ex) If time division is 'Minute', it is start time, and large unit of end time is 'Hour'. Also, if start time is 'Hour', large unit of end time is 'Day'.
Reference) In case of you don't have DiONTime data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
