It is data object to display the sum value for analog input tag during the time which you set.
Select tag dialogue box is displayed, when you select the 'AI Sum' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.
<Figure 1> is example of inserting data object for AI Sum.
<Figure 1> Example of inserting data object for sum value
This data object setting is same with average value data object. But data command(AiSum) is different.

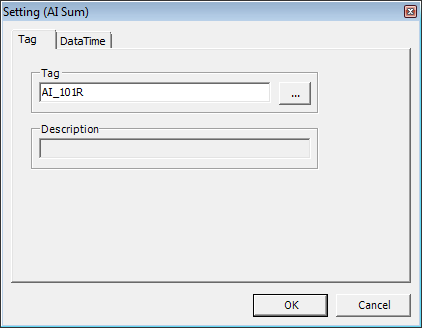

<Figure 2> is example of data object setting for sum value.
<Figure 2> Setting (AI Sum) dialogue box
You can edit sum value in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiSum),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =AiSum,AI_101R,Hour,0,23,0,0,0,
Reference) In case of you don't have Ai Sum data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
