Viewing the Curve Graphic Object

It is graphic object to display the curve at monitoring screen such as <Figure 1>.

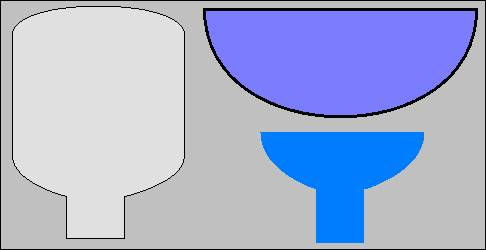

<Figure 1> Example for Curve graphic object

Curve graphic object such as <Figure 1> is displayed as various shape according to line thickness and line color etc.

You can do control connecting the tag or moving, reducing and extending etc by using extension options.

If you press mouse right button at curve graphic object, shortcut menu of graphic is shown.

Size of curve, position, line thickness, line color and extension etc are set at studio. (Curve graphic object settings)

Reference) Line, rectangle and circle etc can be changed as curve object at studio.

Relate items)

Shortcut menu of Graphic
