Viewing the Circle Graphic Object
It is graphic object to display circle at monitoring screen such as <Figure 1>.

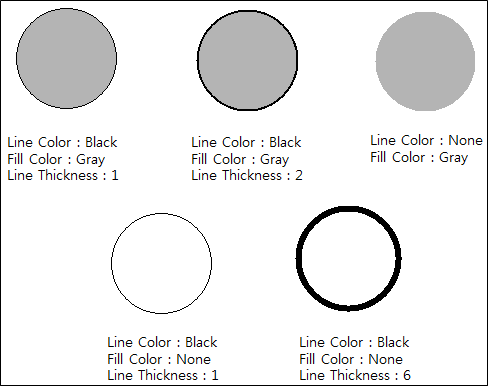

<Figure 1> Example for Circle graphic object
Circle graphic object such as <Figure 1> is displayed as various shape according to line thickness and fill color etc.
You can do control connecting the tag or moving, reducing and extending etc by using extension options.
If you press mouse right button at circle graphic object, shortcut menu of graphic is shown.
Size of circle, line thickness, fill color and extension etc are set at studio. (Circle graphic object settings)
