Viewing the Digital Output Button Graphic Object
It is graphic object to output the set digital tag by pressing the button.
<Figure 1> is example for digital output button graphic object.

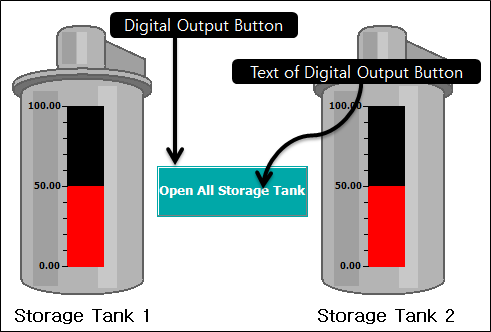

<Figure 1> Example for Digital Output Button graphic object
Digital output(DO) tag to be included at digital output button, size of button, color, position and text etc are displayed as the set value which was set at studio. (Digital output button setting)
If you press the digital output button by using mouse left button, you can do digital output, and if you use mouse right button, shortcut menu of graphic is shown.
If you press the digital output button by using mouse left button, dialog box is shown such as <Figure 2>.

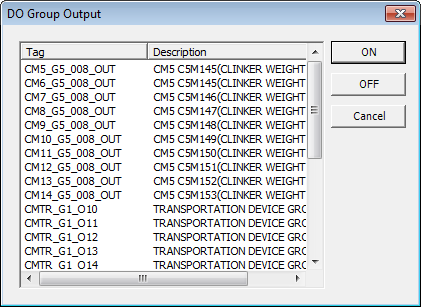

<Figure 2> Example for DO Group Output dialog box displayed when you press the digital output button
The number of digital output tags which are set by digital output button is 1 ~ 32767.
