Searching the Alarm
It is dialog box to search the alarms by date/port/alarm type.
If you press
button of alarm data view menu
button, dialog box is shown such as <Figure 1>.

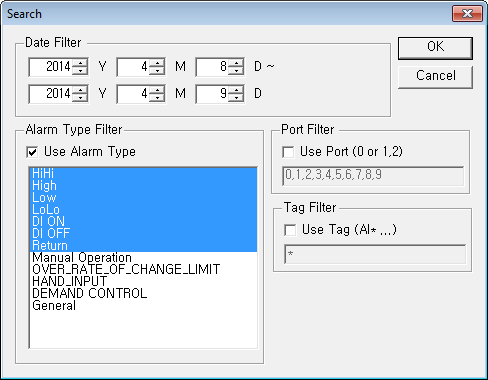

<Figure 1> Example for Search dialog box
Date Filter : Set the period(date) to search.
Alarm Type Filter : After checking the
,
set by selecting below multiple alarm type to search.
Port Filter : After checking the
,
enter the port to search. (Ex : 0,1,2,3)
Tag Filter : After checking the
,
set by entering part/all of tag name to search.
