It is data object to display the AI minimum value of multiple lines, as much as you set.
Select tag dialogue box is displayed, when you select the 'AI Multi Min' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.
<Figure 1> is example of the inserted data object for minimum value of multiple lines.
<Figure 1> Example of inserting data object for minimum value of multiple lines
This data object setting is same with average value of multiple lines data object. But data command(AiMultiMin) is different.

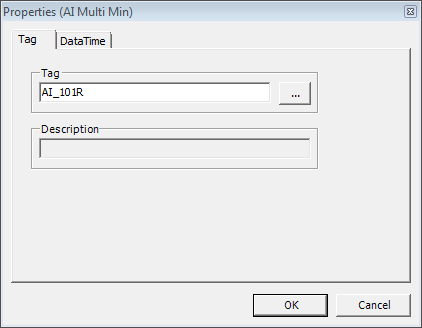

If you double click the AI Multi Min which is inserted in cell, dialogue box comes up such as <Figure 2>.
<Figure 2> Properties (AI Multi Min) dialogue box
You can edit minimum value of multiple lines in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMultiMin),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
Example of editing a cell text) =AiMultiMin,AI_101R,Hour,0,23,0,0,
Reference) In case of you don't have AiMultiMin data, it displays null data which you set at 'Config | Report Etcกฏ. (Basic : *** )
Relate items)
AI Average Value of Multiple Lines
