It is data object to display the minimum value for analog input tag during the time which you set.
Select tag dialogue box is displayed, when you select the 'AI Min' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.
<Figure 1> is example of inserting data object for AI Min.
<Figure 1> Example of inserting data object for minimum value
This data object setting is same with average value data object. But data command(AiMin) is different.
<Figure 2> is example of data object setting for minimum value.

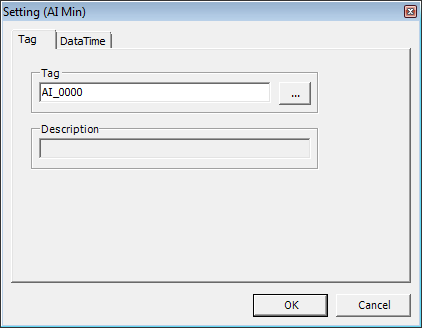

<Figure 2> Setting (AI Min) dialogue box
You can edit max value in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMin),
3) Analog input tag(AI_0000 etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not(1 : Set up, 0 : Not set up),
Example for edit a cell text) =AiMin,AI_0000,Hour,0,23,0,0,0,
Reference) In case of you don't have AiMin data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
