Sum of AI Maximum Value as Multiple Lines

It is data object to display sum of AI maximum value, as much as you set.

Select tag dialogue box is displayed, when you select the 'AI Multi Max Add' at 'Insert Basic Data' dialogue box.

And if you select analog input tag, datatime dialogue box comes up.

<Figure 1> is example of the inserted data object for sum of maximum value as multiple lines.

<Figure 1> Example of inserting data object for sum of maximum value as multiple lines.

This data object setting is same with average value of multiple lines data object. But data command(AiMultiMaxSum) is different.

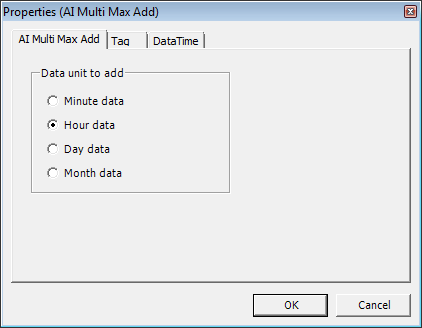

<Figure 2> Properties (AI Multi Max Add) dialogue box

You can edit sum of maximum value as multiple lines in cell text edit box, as following the order.

1) Letter for data start(=),

2) Data command(AiMultiMaxSum),

3) Analog input tag(AI_101R etc),

4) Time division(Selection of Min, Hour, Day, Mon),

5) Start time small unit,

6) End time small unit,

7) Start time large unit,

8) End time large unit,

9) Unit data to add (0 : Min, 1 : Hour, 2 : Day, 3 : Month),

10) Designate the Month/Day/Hour or not(1 : Set up, 0 : Not set up),

Example of editing a cell text) =AiMultiMaxSum,AI_101R,Hour,0,23,0,0,1,0,

Reference) In case of you don't have AiMultiMaxSum data, it displays null data which you set at 'Config | Report Etc’. (Basic : *** )
