It is data object to display the order of multiple lines data such as analog/digital data object, Multi Ave, Multi Min, Multi On Time, Multi Off Time ... etc.
If you select 'Multi Order' at 'Insert Basic Data' dialogue box, datatime dialogue box comes up.
Multi Order data object is inserted such as <Figure 1>, if you set the time range in datatime dialogue box.
<Figure 1> Example of inserting Multi Order data object
<Figure 2> is example of 'View as run mode' for <Figure 1> at LocalMain or Reporter Editor.
Multi Order is displayed differently at 'View as run mode' according to Display Format.

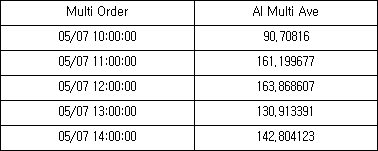

<Figure 2> Example of 'View as run mode' for <Figure 1>
You can edit Multi Order data object in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(EtcMultiCount),
3) Time division(Selection of Min, Hour, Day, Mon),
4) Start time small unit,
5) End time small unit,
6) Start time large unit,
7) End time large unit,
Example of editing a cell text) =EtcMultiCount,Hour,10,14,0,0,
Relate items)
