It is data object to display 'DI ON/OFF List Sum' data as much as amount of time for a specified time range.
You can set the contents for ON/OFF List data to display, at 'Config | On/Off List' in AutoBase Studio.
This tag setting can input the specific digital tag name or * (all tags), ? (same string).
Example of inputting the tag)
* - All tags ,
di* - All tags which start as di,
di??Tag* - All tags which start with the first 2 letters as di, 5~7 letters are Tag.
<Figure 1> Example of inserting data object for summing of DI on/off list operation time as multiple lines
This data object setting is same with 'DI ON/OFF List Sum' data object. But data command(DiMultiOnOffListSum) is different.
<Figure 2> is example of inserting data object for Di Multi ON/OFF List Sum.
You can insert data object by setting the Time column in 'On/Off List Sum' tab, digital tag(selecting the tag) in 'Tag' tab and time range in 'DataTime' tab etc, such as <Figure 2>.

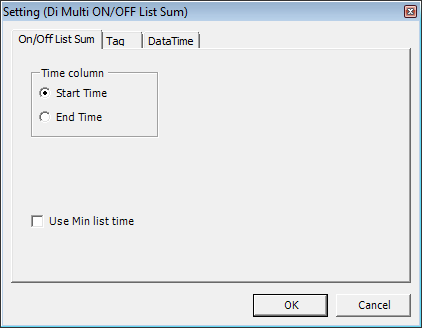

<Figure 2> Setting (Di Multi ON/OFF List Sum) dialogue box
You can edit Di Multi ON/OFF List Sum data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
1) Letter for data start(=),
2) Data command(DiMultiOnOffListSum),
3) Digital input tag(Auto etc),
4) Time column to use(0 : Use Start Time, 1 : Use End Time),
5) Time division(Selection of Min, Hour, Day, Mon),
6) Start time small unit,
7) End time small unit,
8) Start time large unit,
9) End time large unit,
10) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =DiMultiOnOffListSum,Auto,0,Hour,0,23,0,0,0,
Reference) In case of you don't have DiMultiOnOffListSum data, it displays null data which you set at 'Config | Report Etcกฏ. (Basic : ***)
