It is data object to display total operation time for 'DI ON/OFF List'.
You can set the contents for ON/OFF List data to display, at 'Config | On/Off List' in AutoBase Studio.
This tag setting can input the specific digital tag name or * (all tags), ? (same string).
Example of inputting the tag)
* - All tags ,
di* - All tags which start as di,
di??Tag* - All tags which start with the frist 2 letters as di, 5~7 letters are Tag.

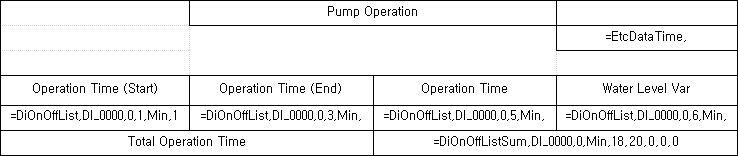

<Figure 1> Example of 'DI ON/OFF List Sum' (last cell)
You can insert data object by setting the Time column in 'On/Off List Sum' tab, digital tag(selecting the tag) in 'Tag' tab and time range in 'DataTime' tab etc, such as <Figure 2>.

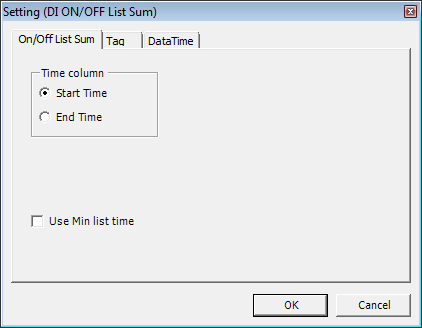

<Figure 2> is example of inserting data object for DI ON/OFF List Sum.
<Figure 2> Setting (DI ON/OFF List Sum) dialogue box

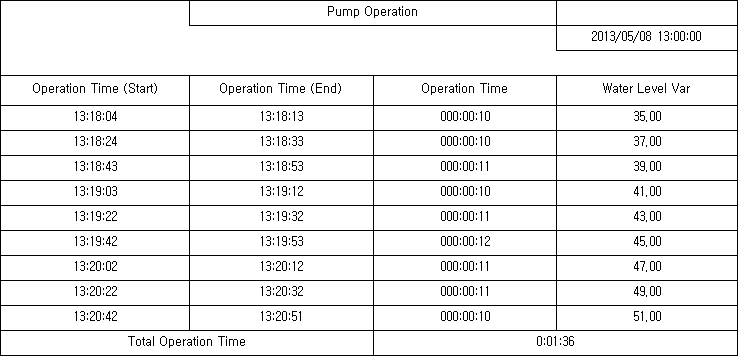

<Figure 3> is example of 'View as run mode' for <Figure 1> at LocalMain or Reporter Editor.
<Figure 3> Example of 'View as run mode' for <Figure 1>
You can edit DI ON/OFF List Sum data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
1) Letter for data start(=),
2) Data command(DiOnOffListSum),
3) Digital input tag(DI_0000 etc),
4) Time column to use(0 : Use Start Time, 1 : Use End Time),
5) Time division(Selection of Min, Hour, Day, Mon),
6) Start time small unit,
7) End time small unit,
8) Start time large unit,
9) End time large unit,
10) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =DiOnOffListSum,DI_0000,0,Min,18,20,0,0,0,
Reference) In case of you don't have DiOnOffListSum data, it displays null data which you set at 'Config | Report Etcกฏ. (Basic : ***)
