It is data object to display the DI current value of time which you set. (Day, Hour, Minute)
Select tag dialogue box is displayed, when you select the 'DI Moment' at 'Insert Basic Data' dialogue box.
And if you select digital input tag, data time dialogue box comes up.
<Figure 1> is example of inserting data object for DI Moment.
<Figure 1> Example of inserting data object for moment value of digital input
This data object setting is same with DI ON Time data object. But data command(DiMoment) and cell text editing is different.
<Figure 2> is example of data object setting for moment value of digital input.
Moment Value Point is set such as <Table 1>.

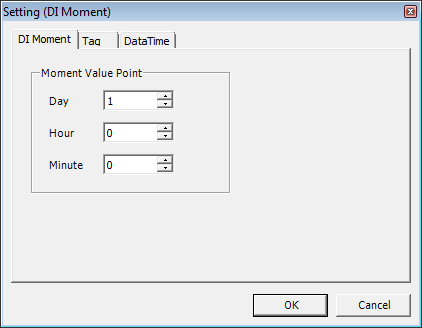

<Figure 2> Setting (DI Moment) dialogue box
| Time | Data point to set |
Note |
| Minute | None |
Time to View : Year, Month, Day, Hour, Time Range : Minute |
| Hour | Minute |
Time to View : Year, Month, Day, Time Range : Hour |
| Day | Hour, Minute |
Time to View : Year, Month, Time Range : Day |
| Month | Day, Hour, Minute |
Time to View : Year, Time Range : Month |
<Table 1> Point of moment value to set as time division
You can edit moment value in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(DiMoment),
3) Digital input tag(PW-1 ST etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) DI Moment Value Point, Day (1 ~ 31(Sometimes 30 or 29, 28)),
10) DI Moment Value Point, Hour (0 ~ 23),
11) DI Moment Value Point, Min (0 ~ 59),
Example of editing a cell text) =DiMoment,PW-1 ST,Hour,0,23,0,0,1,0,0,
Reference) In case of you don't have DiMoment data, it displays null data which you set 'Config | Report Etc'. (Basic : ***)
