Inserting a Function



It is function to calculate the average, maximum, minimum value of cell which you specify.

If you select the 'Insert | Function' after selecting the cell(one or several) to insert the function, Insert Function dialogue box comes up such as <Figure 1>.

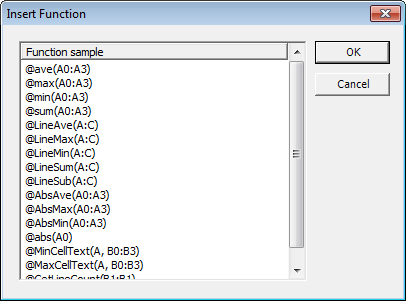

<Figure 1> Insert Function dialogue box



You can insert as following function, by selecting the function sample at <Figure 1> dialogue box.

             @ave : Calculate the average value in cell which you specify.

             @max : Calculate the maximum value in cell which you specify.

             @min : Calculate the minimum value in cell which you specify.

             @sum : Function to get the total sum value of specified cell.

             @LineAve : Calculate the horizontal cell average value of data object for multiple lines that vertical cell is changeable.

             @LineMax : Calculate the horizontal cell maximum value of data object for multiple lines that vertical cell is changeable.

             @LineMin : Calculate the horizontal cell minimum value of data object for multiple lines that vertical cell is changeable.

             @LineSum : Function to add the horizontal cell values of data object for multiple lines that vertical cell is changeable.

             @LineSub : Function to subtract the horizontal cell values of data object for multiple lines that vertical cell is changeable.

             @AbsAve : Calculate the average of absolute value in cell which you specify.

             @AbsMax : Calculate the maximum of absolute value in cell which you specify.

             @AbsMin : Calculate the minimum of absolute value in cell which you specify.

             @abs : Function to get the absolute value of specified cell.

             @MinCellText : It selects the minimum value of specified range for horizontal cells. And get the specified vertical cell text which is situated at minimum value location.

             @MaxCellText : It selects the maximum value of specified range for horizontal cells. And get the specified vertical cell text which is situated at minimum value location.

             @GetLineCount : Function to get the count of lines which is between start and end cell location, that you specify.



 You can edit a function at Cell Text Edit dialogue box, by pressing the ENTER key or double clicking the cell which includes function(including calculation format) data object.
