Setting the Database Graphic Object Column
If you select 'Option' of database object shortcut menu, dialog box is shown such as <Figure 1>.

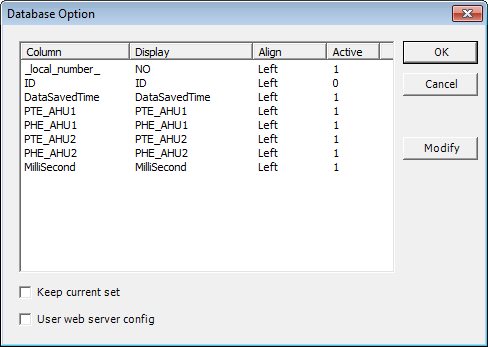

<Figure 1> Example for Database Option dialog box
Entire data lists of the set database table and order number displayed as '_local_number_' are displayed at database option dialog box such as <Figure 1>.
:
Maintain the setting which is changed during executing the LocalMain program
as it is.
:
Use the setting of webserver as it is. (Setting at copying the web)
If you double click the mouse left button or press the
button after selecting the specific list of <Figure 1>, dialog box is shown
such as <Figure 2>.

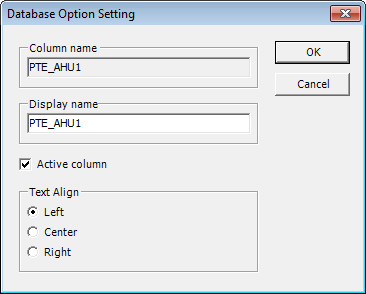

<Figure 2> Example for Database Option Setting dialog box
You can set column name, whether to act column and text align(arrangement method) etc of database graphic object at <Figure 2>.
Relate items)
Setting the Database Graphic Object at Studio
