It is data object to display the sum value, as much as you set.
Select tag dialogue box is displayed, when you select the 'AI Multi Sum' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.
<Figure 1> is example of the inserted data object for sum value of multiple lines.
<Figure 1> Example of inserting data object for sum value
This data object setting is same with average value of multiple lines data object. But data command(AiMultiSum) is different.

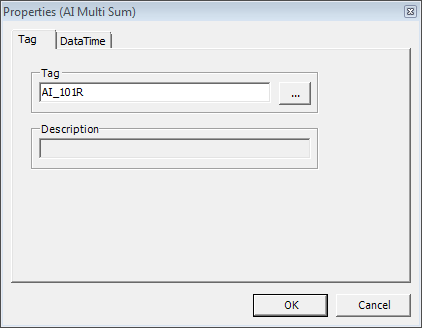

If you double click the Ai Multi Sum which is inserted in cell, dialogue box comes up such as <Figure 2>.
<Figure 2> Properties (AI Multi Sum) dialogue box
You can edit sum value of multiple lines in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMultiSum),
3) Analog input tag(AI_101R etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
Example of editing a cell text) =AiMultiSum,AI_101R,Hour,0,23,0,0,
Reference) In case of you don't have Ai Multi Sum data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
