It is data object to show the string vars which is set.
If you select 'String Vars' at 'Insert Basic Data' dialogue box, dialogue box comes up such as <Figure 1>.

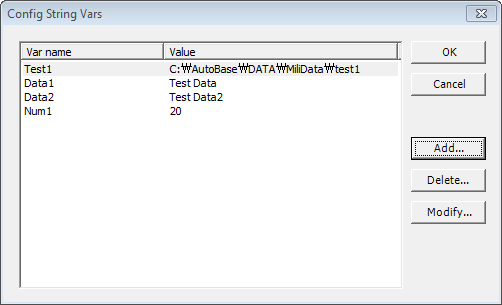

<Figure 1> Config String Vars
String Vars data object is inserted such as <Figure 2>, when you select the vars at Config String Vars dialogue box such as <Figure 1>.
Also, If you double click this data object which is inserted in cell, dialogue box comes up such as <Figure 1>.
<Figure 2> Example of inserting data object for String Vars data object
<Figure 3> is 'View as run mode' for <Figure 2> at LocalMain or Reporter Editor.
<Figure 3> Example of 'View as run mode' for <Figure 2>
You can edit String Vars data object by using the cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(EtcStringVar),
3) String var name,
Example of editing a cell text) =EtcStringVar,Test1,
Notice) It doesn't input the '$' letter in front of string var, when you edit a cell text of String Vars data object.
But, other data object input the '$' letter in front of string var, for making as string var.
Relate items)
