It is data object to display the event time for maximum value during the time which you set.
Select tag dialogue box is displayed, when you select the 'AI Event Time of Max' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, data time dialogue box comes up.
<Figure 1> is example of inserting data object for AI Event Time of Max.
<Figure 1> Example of inserting data object for event time of maximum value
This data object setting is same with average value data object. But data command(AiMaxTime) is different.

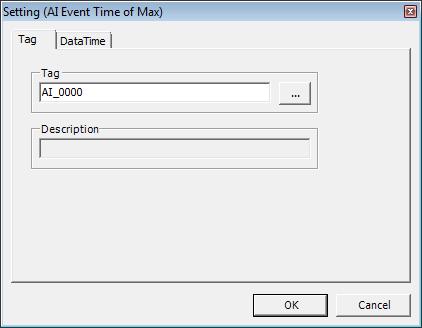

<Figure 2> is example of data object setting for event time of maximum value.
<Figure 2> Setting (AI Event Time of Max) dialogue box
You can edit event time of maximum value in cell text edit box, as following the order.
1) Letter for data start(=),
2) Data command(AiMaxTime),
3) Analog input tag(AI_0000 etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Designate the Month/Day/Hour or not (1 : Set up, 0 : Not set up),
Example of editing a cell text) =AiMaxTime, AI_0000, Hour,0,23,0,0,0,
Reference) In case of you don't have AiMaxTime data, it displays null data which you set at 'Config | Report Etc'. (Basic : ***)
