It is data object to display sum of maximum value for analog input tag during the time which you set.
Select tag dialogue box is displayed, when you select the 'AI Max Add' at 'Insert Basic Data' dialogue box.
And if you select analog input tag, datatime dialogue box comes up.
<Figure 1> is example of inserting data object for AI Max Add.
<Figure 1> Example of inserting data object for sum of maximum value
This data object setting is same with average value data object. But data command(AiMaxSum) and cell text editor box are different.
<Figure 2> is example of data object setting for sum of maximum value.

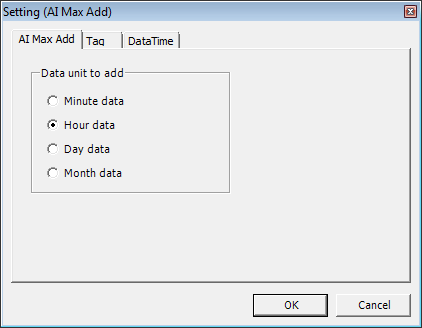

<Figure 2> Setting (AI Max Add) dialogue box
You can select the data unit to add such as <Figure 2>.
<Figure 3> is example for viewing as run mode of <Figure 1>.
<Figure 3> Example of viewing as run mode of <Figure 1>
You can edit an sum of maximum value in cell text editor box, as following the order.
1) Letter for data start(=),
2) Data command(AiMaxSum),
3) Analog input tag(AI_0000 etc),
4) Time division(Selection of Min, Hour, Day, Mon),
5) Start time small unit,
6) End time small unit,
7) Start time large unit,
8) End time large unit
9) Unit data to add (0 : Min, 1 : Hour, 2 : Day, 3 : Month),
10) Designate the Month/Day/Hour or not. (1 : Set up, 0 : Not set up),
Example of editing a cell text) =AiMaxSum, AI_0000, Hour,0,23,0,0,1,0,
Reference) In case of you don't have AiMaxSum data, it displays null data which you set at 'Config | Report Etc'.(Basic : ***)
