This dialog box is used to configure the report.

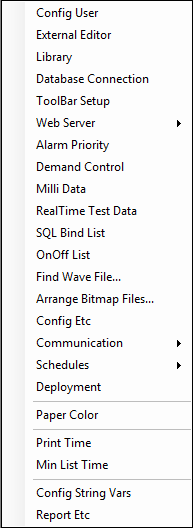

<Figure 1> Submenu in Config menu of Reporter Editor
Config User : It is menu to set the Administrator password and Add/Modify/Delete Users.
External Editor : It is menu to set the Bitmap modification to use.
Library : It is menu to set the directory route for Basic/Users Library.
Database Connection : It sets the users, password, kinds of database.
ToolBar Setup : It sets the specific graphic window at Left/Up/Right/Down side.
Web Server : It copies the project(graphic/script etc for webserver) to website directory which you set.
Alarm Priority : It sets the alarm method of screen/sound, and line print or not for alarm level (000~999 level).
Demand Control : It sets the control for analysis about electric power flow and energy in designated time(basic 15 minute).
Milli Data : It sets the time period and save condition according to tag value which you set, as MDB format.
RealTime Test Data: .
SQL Bind List : It sets the connection about transmitting monitered data as DB data, or opening the DB data.
OnOff List : It is menu to save the operation record when DI tag is turned ON/OFF, by setting this.
Find Wave File... : It copies sound file to project folder and play the sound.
Arrange Bitmap Files... : It deletes the unused bitmap, animation file, in project folder.
Config Etc : .
Communication : .
Schedules : .
Deployment : .
Paper Color : It designate to print the background color for Reporter.
Print Time : It sets the view/print standard time which are arranged at Reporter Editor.
Min List Time : It sets the beginning and end time for period data.
Config String Vars : It sets the variable which is changed situationally, when Reporter is executed.
Report Etc : It is menu to set the printer for @ReportPrint function, display sentence of null data.
