It is data object to display the current value of analog tag.
Selecting tag dialogue box is displayed, when you select the 'AI Current' at 'Insert Basic Data' dialogue box.
<Figure 1> Example of inserting data object for analog input current value
If you double click the AiCurr which is inserted in cell, dialogue box comes up such as <Figure 2>.

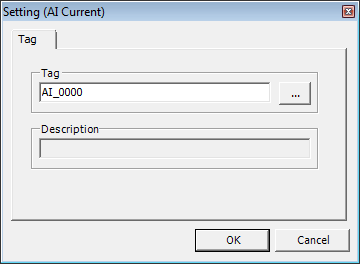

<Figure 2> Setting (AI Current) dialogue box
You can set up the tag to use by using the
button or
Tag edit box such as <Figure 2>.
<Figure 3> is 'View as run mode' of <Figure 1> at LocalMain or Reporter Editor.
<Figure 3> Example of viewing as run mode of <Figure 1>
You can edit an ai current value in cell text editor box, as following the order.
1) Letter for data start(=),
2) Data command(AiCurr),
3) Analog input tag(AI_0000 etc),
Example of editing a cell text) =AiCurr, AI_0000,
Note) It displays normal value, when LocalMain is run. (in case of LocalMain not run, it displays always 0)
