YAMATAKE SDC/DMC controller is driver to communicate with device of YAMATAKE-Honeywell Co. in Japan.
Reference) Help for RG, WGF, WG commands

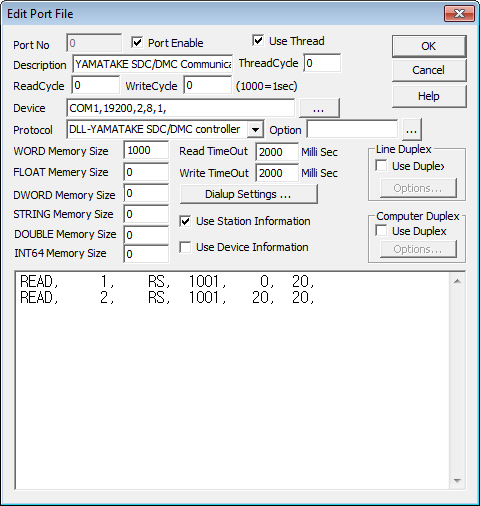

Below is read setting example of YAMATAKE SDC/DMC controller communication driver.
|
Device Settings are input, Com Port(COM1), Com Baud(19200), Parity Bit(2), Data Bit(8), Stop Bit(1).
Read schedule example)
| Memory | Station | Data Type (Fixed) |
Read start address | Save start address | Read size |
| READ, | 1, | RS, | 1001, | 0, | 20, |
| READ, | 2, | RS, | 1001, | 20, | 20, |
1) Station : Station number which set at controller.
Station - 0 ~ 255 (Low byte), sub Station – High byte.
2) Data Type : Data type to read. Fixed to RS.
3) Read Start Address : Memory start address to read. Refer to communication parameter table manual of SDC/DMC controller about memory address.
4) Save Start Address for Communication Server : Saving start address of Communication Server.
5) Read Size : read size.
Communication parameter table which is frequently used at DMC controller is such as <Table 2>.
| Parameter name | Memory address(Decimal) | Possible to write |
| All alarm | 1001 | X |
| PV input error | 1002 | X |
| Control related status | 1003 | X |
| PV ch1 ~ ch4 | 1004 ~ 1007 | X |
| SP value under operation ch1 ~ ch4 | 1008 ~ 1011 | O |
| SP value set No. under operation ch1 ~ ch4 | 1012 ~ 1015 | O |
| PID value set No. under operation ch1 ~ ch4 | 1016 ~ 1019 | X |
| MV (PID calculated result) ch1 ~ ch4 | 1020 ~ 1023 | O |
| Auto/Manual status ch1 ~ ch4 | 1028 ~ 1031 | O |
| Run/Ready status ch1 ~ ch4 | 1032 ~ 1035 | O |
| Auto tuning Stop/Start status ch1 ~ ch4 | 1040 ~ 1043 | O |
| Internal calculation result of event output/external switch input | 1044 | X |
| DI status | 1045 | X |
| DO status | 1046 | X |
| Current trans. Value ch1 ~ ch2 | 1047 ~ 1048 | X |
| P, I, D, RE currently used ch1 | 1075 ~ 1078 | O |
| P, I, D, RE currently used ch2 | 1079 ~ 1082 | O |
| P, I, D, RE currently used ch3 | 1083 ~ 1086 | O |
| P, I, D, RE currently used ch4 | 1087 ~ 1090 | O |
| <Table 2> Communication parameter table memory address and contents which are frequently used at DMC controller | ||
Write to direct address of controller, regardless of SCAN File.
Digital Write
You can set or control SDC/DMC controller by using the digital write command.
Digital write setting parameters are as follows :
1) PORT : Connected Port no.(0 ~ 255)
2) Station : Station number which set at controller.
Station - 0 ~ 255 (Low byte), sub Station – High byte.
3) ADDRESS : Memory address of communication parameter table. (Decimal)
4) Extra1 : If Extra2 is '1', it is bit position. (0 ~ 15).
5) Extra2 : 1 : ON/OFF of bit unit.
Etc : Output the value as 0 or 1.
Ex) Port:0, Station:1, Address:1008, Extra1:3, Extra2:1
After writing as digital, you can change(ON/OFF) the 4th bit value of SP ch1 of SDC/DMC controller.
Analog Write
You can set or control SDC/DMC controller by using the analog write command.
Analog write setting parameters are as follows :
1) PORT : Connected Port no.(0 ~ 255)
2) Station : Station number which set at controller.
Station - 0 ~ 255 (Low byte), sub Station – High byte.
3) ADDRESS : Memory address of communication parameter table. (Decimal)
4) Extra1 : Don't care.
5) Extra2 : Don't care.
Ex) Port:0, Station:1, Address:1009
After writing as analog, you can set SP ch2 value of SDC/DMC controller.
