SATEC RPT091 Protocol

1. Read settings

<Figure 1> is read setting example of using Power Meter RPT091 of SATAC Corp., in Israel.

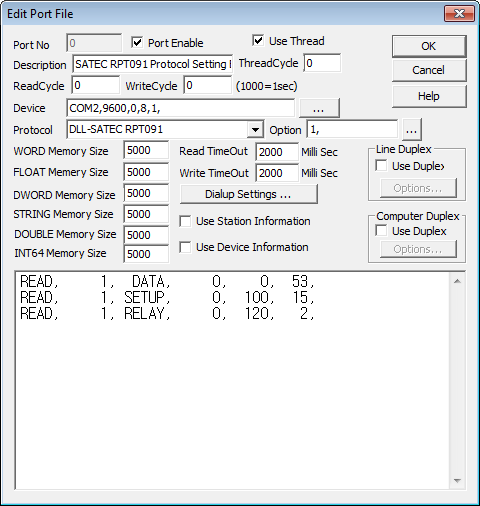

<Figure 1> Read setting example of SATEC RPT091 protocol

Device part of  <Figure 1> input Com Port(COM2), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, and enter TxRTS(TxDTR), RxECHO and TxRTS(TxDTR) End/Start Delay time(nSec) according to 485 communication Converter.

Communication speed(Com Baud), Parity, Data, Stop Bit of SATEC RPT091 are possible to be changed by control panel which is connected at RDM or analog(digital) write.

Importance) If you input 1 at Option part of <Figure 1>, communication driver uses Modbus format(Connect PROT of RPT091), and if you input the number except 0, communication driver uses ASCII format(Not connect PROT of RPT091).

Read schedule example

1)      STATION : STATION (ID) number of RPT091 Meter. (1 ~ 247)

2)      Read Type : Designate data type to read.

DATA – Reading Basic Data,

SETUP – Reading Basic Setup,

STATUS – Reading Status,

VER – Reading Firmware Version Number,

DIRECT – Reading Long Size Direct,

AO – Reading Multiplexed Analog Out Allocation,

ACH – Reading Multiplexed Analog Expander Channel Allocation,

DI – Reading Digital Inputs Allocation,

RELAY – Reading Relay Status,

PULSE – Reading Pulsing Setpoint,

RTC – Reading RTC(Current Time),

VARIABLE – Reading Variable Size Direct,

DEFINE – Reading User-Defined Data,

MAP – Reading User Definable Register,

ALARM – Reading Alarm Setpoint Register,

COMM – Reading Communication Parameter,

ESR – Reading Extended Status Register,

ASR – Reading Alarm Status Register,

OPTION – Reading Instrument Option Register.

3)      Read Start Address : Read start address by the read type.

4)      Save start address for Communication Server : Buf position to save read status value.

5)      Read Size : Size to read.

  Maximum read size is different according to each read type and ASCII, MODBUS protocol. (Refer to <Table 1>)

* Save contents/position by communication protocol and read type are as follows.

MODBUS Protocol's Save Contents and Output Address by READ/WRITE Type

ASCII Protocol's Save Contents and Output Address by READ/WRITE Type

If you click the icon  in protocol option part at <Figure 1>, you can see the dialog box such as <Figure 2>. You can also set read schedule by using this part.

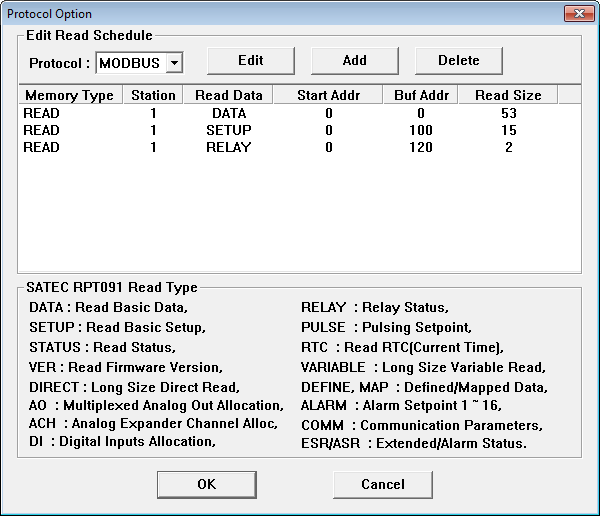

<Figure 2> SATEC RPT091 protocol's Option dialog box



You can set read schedule by using , , button and listbox of <Figure 2>.

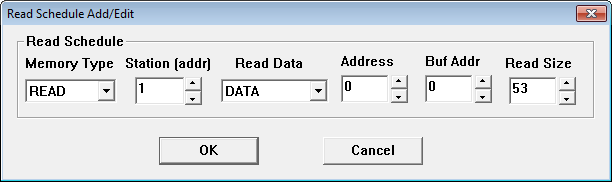

<Figure 3> SATEC RPT091 protocol's read schedule Add/Edit dialog box

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.

2. Writing settings

Write to direct address of controller, regardless of SCAN File.

Digital Write

You can control Relay etc or set status value(reset etc) of Power Meter by using write settings.

Digital write setting parameters are as follows :

1) PORT           Connected PORT number

2) STATION      ID number of Meter. (1 ~ 247)

3) Address      Output address. Use decimal or hexadecimal address (Refer to contents for protocol write)

Output area(Extra1) is DIRECT and VARIABLE : Enter real output address.

Etc : Enter relative address of each output area.

4) Extra1          Area to want to output.

TIME : Set current time of computer as Meter time,

SETUP : Writing Basic Setup,

CLEAR : Reset Energy/Maximum Demands,

RESET : Reset of Meter device,

DIRECT : Writing Long Size Direct (Outputable area only),

RELAY : Writing Changing Relay status value(ON/OFF),

DI : Writing Digital Inputs Allocation,

PULSE : Writing Pulse Setpoint,

RTC : Output the current time(Send current time of computer),

VARIABLE : Writing Variable Size Direct,

DEFINE : Writing User-Defined Data,

MAP : Writing User Definable Register,

ALARM : Writing Alarm Setpoint Register,

COMM : Writing Communication Parameter,

ASR : Writing Alarm Status Register,

OPTION : Writing Instrument Option Register.

5) Extra2        When output area is PULSE : Enter Parameter ID 0 ~ 7 value.

                         When output area is VARIABLE : 1 – Writing WORD Data, 2 – Writing DWORD Data, Etc – Writing BYTE Data.

                         Etc : Don't care.

Reference)   MODBUS Protocol's Save Contents/Position by Write Type

           ASCII Protocol's Save Contents/Position by Write Type

Write example 1)

Station : 1  Address : 0000  Extra1 : CLEAR, EXTRA2 : Blank

If you set as above and write digital value, you can Reset(Clear) Energy/Maximum Demands value of no.1 Station Power Meter.

Write example 2)

Station : 1  Address : 0000  Extra1 : RELAY, EXTRA2 : Blank

If you set as above and write digital value, you can control(ON/OFF) no.1(first) digital Relay of no.1 Station Power Meter.

Write example 3)

Station : 1  Address : 0001  Extra1 : RELAY, EXTRA2 : Blank

If you set as above and write digital value, you can control(ON/OFF) no.2(second) digital Relay of no.1 Station Power Meter.

Write example 4)

Station : 1  Address : 0000  Extra1 : RESET, EXTRA2 : Blank

If you set as above and write digital value, you can restart(Warm Start) no.1 Station Power Meter.

Analog Write

Analog write means writing BYTE/WORD/DWORD/FLOAT value to Meter.

Analog write and digital write have the same settings, but output value is only different.

Write example 1)

Station : 1  Address : 0001  Extra1 : SETUP, EXTRA2 : Blank

If you set as above and write analog value(in case of ASCII protocol) as 5.5, you can change PT value of no.1 Station Power Meter as 5.1.

Write example 2)

Station : 1  Address : 0002  Extra1 : SETUP, EXTRA2 : Blank

If you set as above and write analog value as 100, you can change CT Primary Current value of no.1 Station Power Meter as 100.

Write example 3)

Station : 2  Address : 0002  Extra1 : COMM, EXTRA2 : Blank

If you set as above and write analog value as 1, you can change Address of no.1 Station Power Meter as no.1.

Write example 4)

Station : 1  Address : 0003  Extra1 : COMM, EXTRA2 : Blank

If you set as above and write analog value as 7, you can change communication speed(Com Baud) of no.1 Station Power Meter as 19200bps.

3. Communication cable connection and power connection

Connection method for RS-422/485 communicatino cable

Connect Tx+, Tx- terminal of SATEC RPT091 Meter to Rx+, Rx- of computer side, and connect Rx+, Rx- terminal to Tx+, Tx- of computer side.

Computer side                                    SATEC RPT091 side

            Tx+  -------------------------------------------- Rx+

            Tx-  --------------------------------------------- Rx-

            Rx+  -------------------------------------------- Tx+

            Rx-  --------------------------------------------- Tx-

Select communication protocol type

If you connect(Short) COMMUNICATION terminal's PROT(refer to <Figure 4>) of SATEC RPT091, communication protocol is set as MODBUS,

and if you don't connect(Open) that, communication protocol is set as ASCII mode.

Connect basic power

Connect power(90 ~ 264V, 50/60 HZ or 110 ~ 290 V DC) to no.10 and no.12 terminal(Refer to <Figure 4>) of SATEC RPT091.

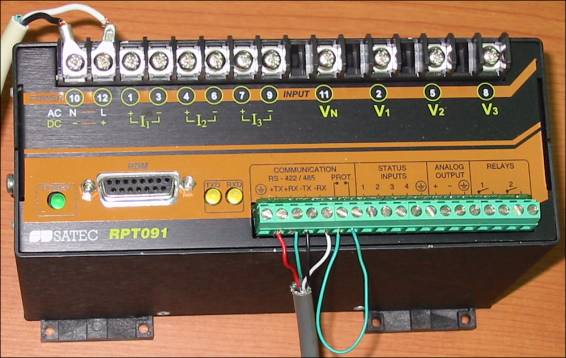

<Figure 4> Terminal block of SATEC RPT091

Connect Display/Operation panel

Connect Display/Operation panel to RDM connecting terminal(Refer to <Figure 5>) of SATEC RPT091.

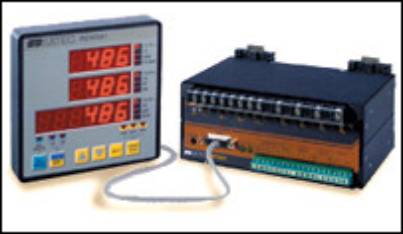

<Figure 5> Appearance of connecting SATEC RPT091 and Display Panel

Setting the Meter Address and communication speed

You can set Power Meter Address(1 ~ 247) and communication speed etc by using SATEC operation panel or communication output.
