TeleDevice use Modem-Device ~ Device-Modem type.
Modem of TeleDevice must always be connected.
When you select 'Option' of TeleDevice after selection TeleDevice at 'Port Device' dialog.
<Figure 1> is example of TeleDevice Option dialog.
|
|

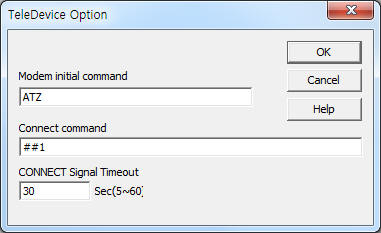

| <Figure 1> Example of TeleDevice Option dialog |
Parameters of TeleDevice Option dialog are as follows :
Modem inital command : input modem inital command according to Modem type.
Connect command : connection command after inital command for entering to data mode. ( normally use ATDT telephone number format )
Connect Signal Timeout : waiting timeout for connection signal.
Relate items)
