Edit Port File menu use for setting device, driver, read schedule, ....

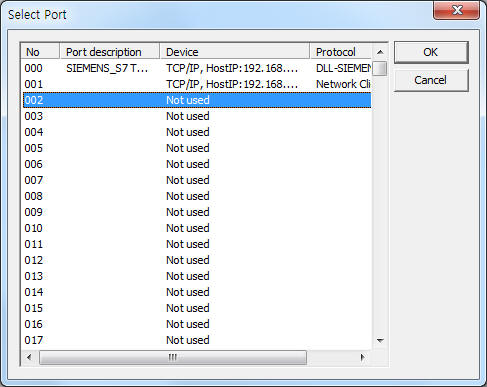

When you select 'File | Edit Port File', the dialog box is shown such as <Figure 1>.
|
|
| <Figure 1> Example of Select Port dialog |
You can select port 0 ~ 255 ( or 0 ~ 9999, ... ) at <Figure 1>.

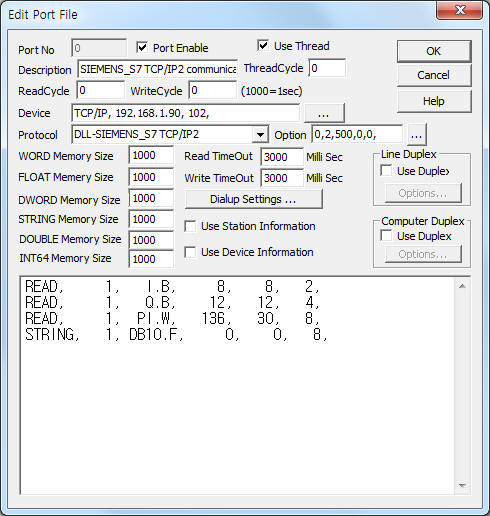

<Figure 2> is setting example of Edit Port File.
 |
| <Figure 2> Setting example of Edit Port File |
Parameters of Edit Port File are as follows :
Port Enable : enable setting of current port.
Port No : shows current port number. ( 0 ~ 255 or 0 ~ 9999 )
Description : description of current port.
Use Thread : selection of use Thread.
Thread Cycle : Thread time cycle when using Thread. ( default = 0 )
ReadCycle : read cycle( period ) of current port. input 0 ~ 60000 by milli second( 1000 = 1secind ) unit.
WriteCycle : write cycle( period ) of current port. input 0 ~ 60000 by milli second( 1000 = 1secind ) unit.
Device : setting of device type.
device type = None, Com Port, Modem, TCP/IP, UDP/IP, TCP-Server, TeleDevice, NetClient, ShardMemory.
refer to Setting of Port Device and Setting of Device type.
Protocol : selection of communication driver type.
refer to Setting of Protocol.
Option : protocol option of each communication driver. use according to communication driver( refer to each communication driver )
WORD Memory Size : memory size of Word. ( 0 ~ 30000 )
FLOAT Memory Size : memory size of Float. ( 0 ~ 30000 )
DWORD Memory Size : memory size of double Word. ( 0 ~ 30000 )
STRING Memory Size : memory size of String. ( 0 ~ 30000 )
DOUBLE Memory Size : memory size of Double. ( 0 ~ 30000 )
INT64 Memory Size : memory size of Int64. ( 0 ~ 30000 )
Read TimeOut : input read TimeOut by milli second.
Write TimeOut : input write TimeOut by milli second.
Dialup Settings : setting for Modem device.
Use Station Information : selection of use station information. ( station information = port no +. 500... )
refer to Communication status value of Communication Server.
Use Device Information : selection of use device information.
Line Duplex : setting of Line Duplex.
Computer Duplex : setting of Computer Duplex.
Editor box for Read Schedule : refer to help of each communication driver.
